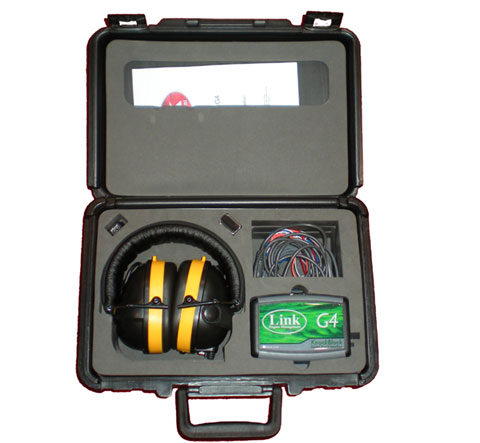

Link G4 Knockblock

Knock sensor interface for use with headphones or direct ECU connection

• Two knock sensor inputs

• High power, low distortion audio output

• ANC (active noise cancellation) detection mode

• 40MHz digital signal micro-processor

• Analogue 0V to 5V output for interfacing to a Dyno or Engine Management System

• Digital time window input for individual cylinder knock control

• Digital window output for interfacing to Link's G4 ECUs

• External knock indication LED

• Fifteen user selectable digital filters

• Selectable detection gain from 1 to 64

• Internal 9V battery compartment for quick setup

• Low power mode for extended battery life (audio only)
